Test leaks

Reference leaks for simulating leakages

Test leaks are used to simulate leaks when setting or monitoring leak testing equipment. They are integrated into the test circuit instead of a test object or parallel to a leak-tight test object.

A fixed flow resistance is specified by a glass capillary specially adapted to the desired leak rate.
The glass capillary is installed in a stainless steel housing and protected from contamination by filters.

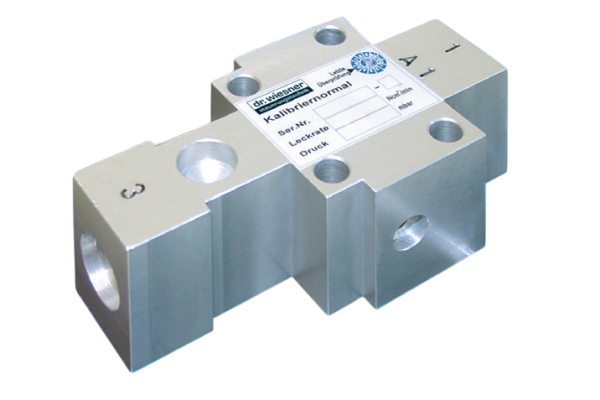

Custom Test Leaks

according to customer requirements

Upon request, we manufacture:

Special designs
Test dummies
with integrated glass capillary according to customer specifications

We would be happy to assist you in preparing a corresponding offer.

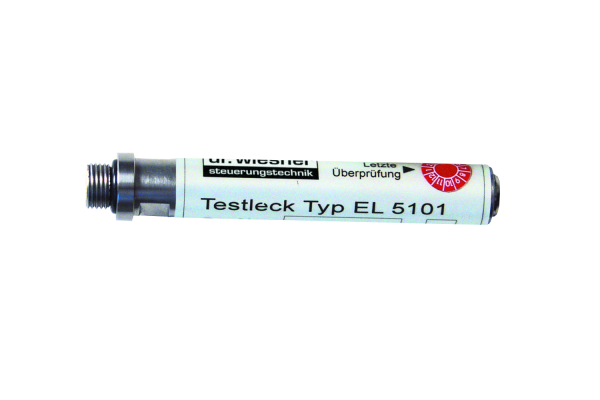

Test Leak 5101

External thread G1/8" with O-ring

Connection: one-sided male thread G1/8″ with O-ring
Accuracy ±5% of nominal value
suitable for different test gases
robust stainless steel housing
Factory certificate included
DAkkS certificate optionally available
Delivery in practical storage box

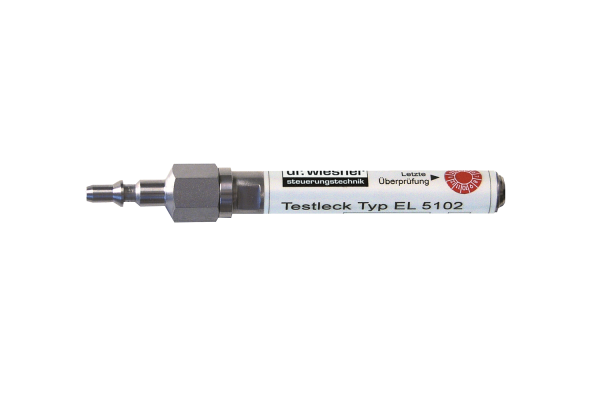

Test Leak 5102

Quick coupling Stäubli RBE03

Connection: Quick coupling Stäubli RBE03
Accuracy ±5% of nominal value
suitable for different test gases
robust stainless steel housing
Factory certificate included
DAkkS certificate optionally available
Delivery in practical storage box

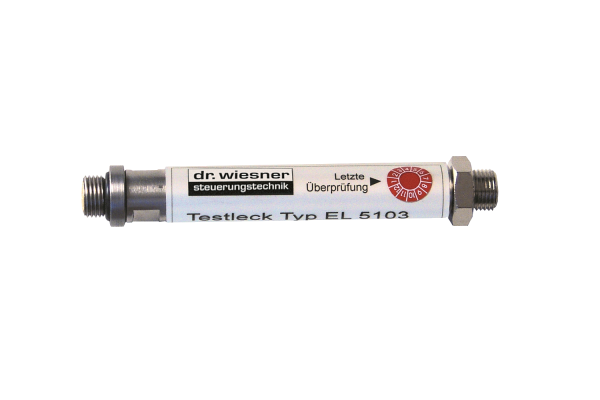

Test Leak 5103

2x G1/8" male thread with O-ring

Connection: G1/8″ male thread with O-ring on both sides
Accuracy ±5% of nominal value
suitable for different test gases
robust stainless steel housing
Factory certificate included
DAkkS certificate optionally available
Supplied in a practical storage box

Test Leak 5104

Hose connection 4/6 mm

Connection: for hose with 4 mm inner diameter/6 mm outer diameter
Accuracy ±5% of nominal value
suitable for different test gases
robust stainless steel housing
Factory certificate included
DAkkS certificate optionally available
Delivery in practical storage box

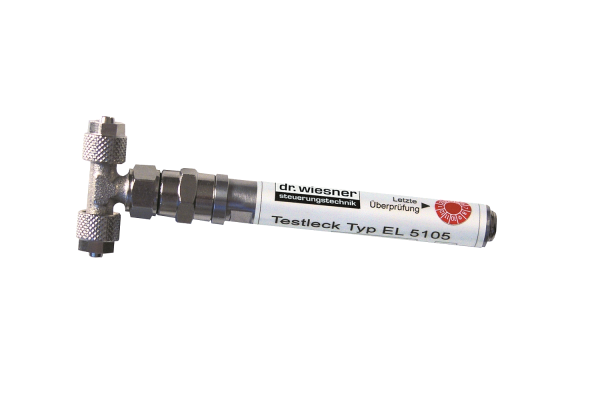

Test Leak 5105

Hose 4/6 mm T-connector

Connection:
- for hose 4 mm inner diameter/6 mm outer diameter
- with T-connector
Accuracy ±5% of nominal value
suitable for different test gases
robust stainless steel housing
Factory certificate included
DAkkS certificate optionally available
Delivery in practical storage box

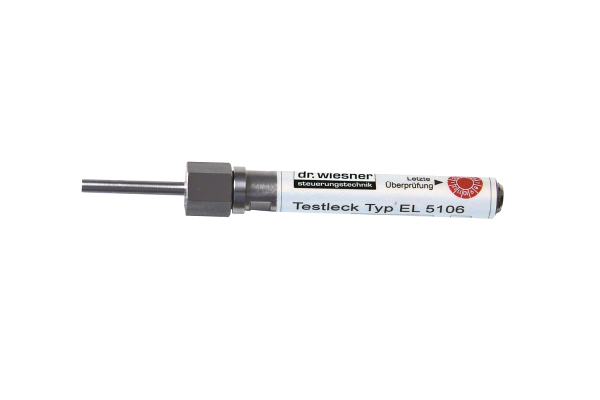

Test Leak 5106

Tube Ø 4 mm

Connection: for 4 mm diameter tube
Accuracy ±5% of nominal value
suitable for different test gases
robust stainless steel housing
Factory certificate included
DAkkS certificate optionally available
Supplied in a practical storage box

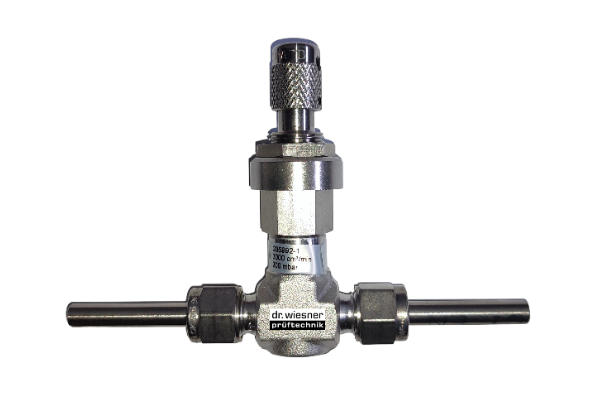

Test Leak Flow Standard

for large leaks

for large leak rates when other test leaks are insufficient
set and sealed to the desired flow rate and test pressure
Connection:
- External thread G1/8″
- other connections available upon request
Accuracy ±5% of nominal value
incl. Plastic storage box with foam inserts
incl. Factory certificate according to DIN EN 10204.

The most important features:

various connection options available
Pressure range -1 to 400 bar
Leak rates from 0.01 to 1500 ml/min continuously available
Special designs also available for smaller or larger leak rates
Accuracy ±5% of nominal value
suitable for different test gases
robust stainless steel housing
Special designs also available for liquid media
Factory certificate included
DAkkS certificate optionally available

Our test leaks are easy to handle and have a long service life.
On request, we also manufacture special designs or test dummies with built-in glass capillary according to customer specifications.
We would be happy to provide you with a corresponding offer.
