The right leak testing device for every application

Four product lines, over 50 variants – flexible, connected, high-performance

Our product range offers four device series with many standard variants for leak and tightness testing – from the compact entry-level model to the high-end system for Industry 4.0 applications. Depending on the testing task, you can choose between LTS compact, LTS 670, INTEGRA, or INTEGRA Evo.

INTEGRA_vac_5

INTEGRA vac

Vacuum Station for Leak Testers

  • Compatible with all INTEGRA leak testing systems
  • 19-inch mounting; compatible with other Wiesner series
  • easy operation
  • Flow rate: up to 0.55 m³/h
  • Adjustable vacuum pressure: up to 50 Pa abs. (0.5 mbar abs.)
  • Automatic activation via the I/O interface is possible
  • Low noise: < 52 dB(A)
  • ideal for laboratory applications
INTEGRA evo

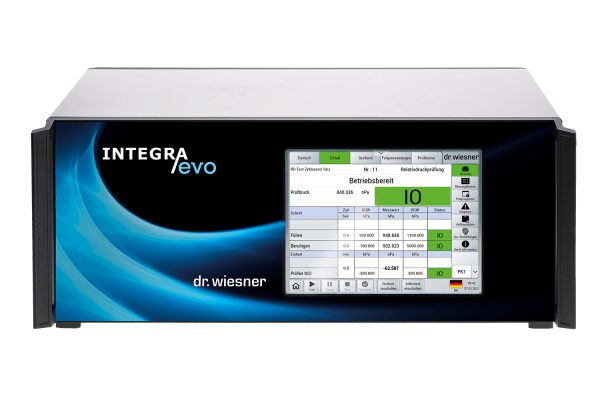

INTEGRA Evo

Convenience for efficient testing processes

  • Industry 4.0 & Connectivity
  • Intuitive User Interface
  • Touch Display
  • Relative pressure test
  • Differential pressure test
  • Filling from pre-volume for gross leak detection when testing closed objects in a test chamber
  • Ramp Testing
  • Dynamic pressure test
  • Volume Measurement
  • Additional test circuits via EtherCAT interface
  • Self-diagnosis with integrated maintenance and service counter
  • Interface compatibility with predecessor systems
INTEGRA_DF_square_dis

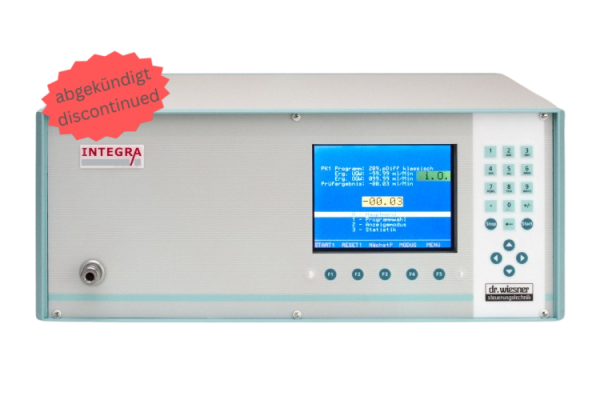

INTEGRA

The classic - for all common test procedures

  • with fully graphic color display
  • up to three independent test circuits operable (additional test circuits)
  • 255 test programs can be stored
  • Ring buffer for 4000 measurement and test results
  • automatic process optimization autoTune (Option)
  • Test leak connection via quick coupling (front panel)
  • Communication via flexibly exchangeable bus interface modules
  • freely programmable fixture control
  • freely programmable special test sequences
  • Password protection
LTS670_square_dis

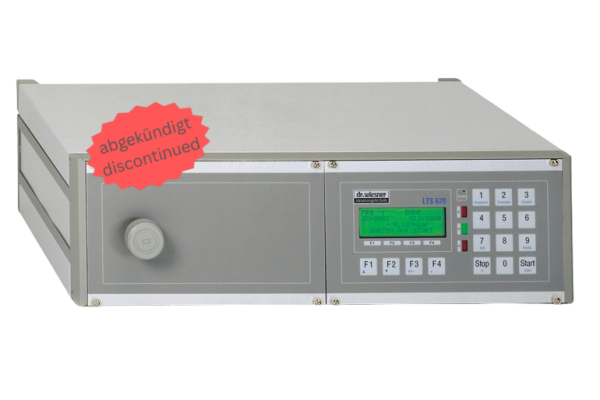

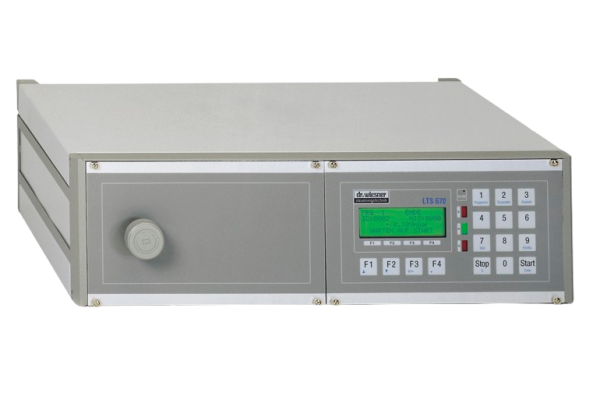

LTS 670

Proven, robust leak testing system

  • Differential pressure tests
  • Relative pressure tests
  • 64 test programs can be saved
  • Multilingual plain text display via LCD display
  • With statistical evaluation of the measurement results
  • Optical result display
  • Available for overpressure or vacuum
  • Password protection
  • Serial interface for measured value output
ext_PK_RD_4_Web

External Test Circuit

External Test Circuit for Installation in Test Machines

Many users of our test equipment want to physically separate the test specimen adaptation from the measurement and control electronics.
In many applications, this offers advantages in terms of installation space and measurement accuracy.
The INTEGRA evo can also meet this need.
  • Compact external test circuit
  • Measurement taken directly at the scene
  • Unnecessary residual volume is avoided
  • The measurements are faster and more accurate
  • Operation via the INTEGRA evo main unit
  • Available for relative pressure or differential pressure measurement
LTS_compact_dis

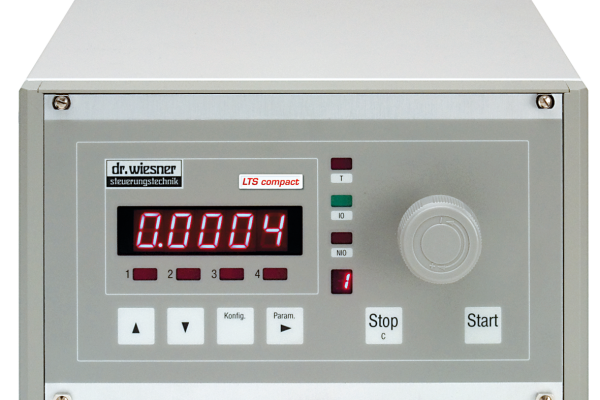

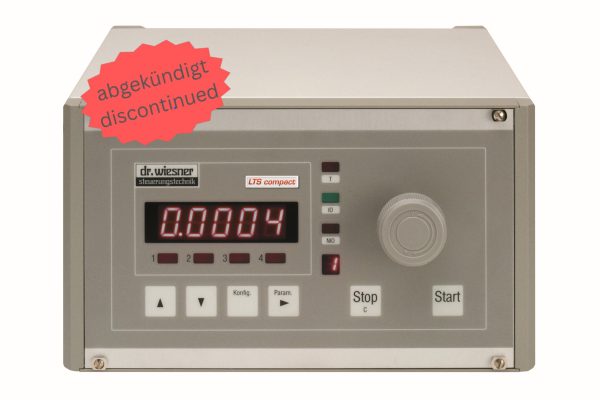

LTS Compact

Compact, simple. Cost-effective

  • Cost-effective single-purpose leak testing device for relative pressure testing
  • Available for overpressure or vacuum
  • Adjustable limits
  • Proven microelectronics
  • Sophisticated test pneumatics
  • Compact dimensions
  • RS232 as standard
  • Optional digital I/O interface

All devices are characterized by high measurement resolution, robust technology, and versatile interfaces. They are delivered with factory calibration and include a test certificate according to DIN EN 10204. Custom solutions for special applications are also possible.

The product range is complemented by practical accessories – such as calibration units, vacuum generators, or remote controls. Our application engineers will be happy to assist you with the planning and parameterization of your individual solution.
