Complete solutions for testing castings

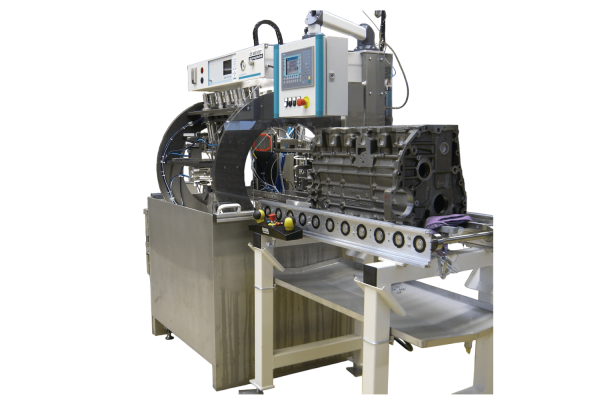

Test Stand for Truck Engine Blocks
Combination of differential pressure testing and water bath
- Loading via roller conveyor
- Leak testing using the differential pressure method with INTEGRA leak test system
- Automatic lowering into the water bath after NOK evaluation
- Rotation of the test object under water by 180° possible
Assembly and Leak Testing System for Bearing Housings
Einpressen und Prüfen
- Automatic press-fitting of 2 balls into bores offset by 90°, with force-displacement monitoring
- Leak testing in parallel in 2 test chambers with INTEGRA leak test system and an additional test circuit
- Feed conveyor with specific fixtures according to part geometry
- 4-station rotary indexing table with 4 workpiece holders, each swiveling by 90°
- Loading and unloading each via gripper system on linear guides
- Automatic sorting by OK or NOK via a divided conveyor belt
- Machine control via PLC
- Good part marking by impact stamping
Individual Consultation and Quote!
Whether for testing devices, test fixtures, machines, calibration services, trials, or contract testing:
We are here for you – you can rely on us.
