Special Testing Devices

There are always testing tasks for which there is no ready-made measuring device. This is where our know-how and extensive experience come into play.

In cooperation with you, we develop and build the appropriate measuring system for your task.

csm_14683_autom_2ebe8897cc-min

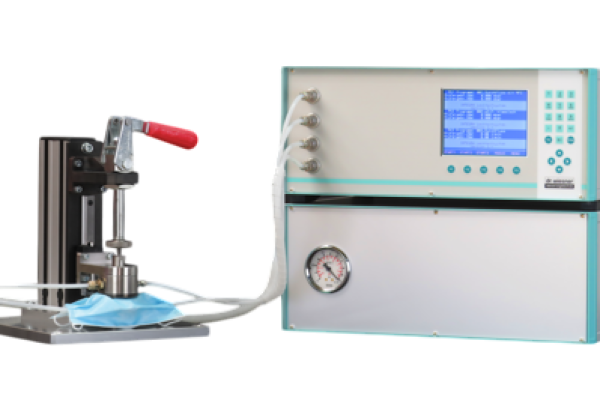

Medical Face Masks According to DIN EN 14683

Semi-automatic test bench for testing the pressure difference

  • Test bench for pressure difference measurements on medical face masks (DIN EN 14683) and everyday masks (CWA 17553)
  • Differential pressure measurement
  • Flow control
  • Vacuum supply
  • Fully automatic sequence with 256 test programs
  • Limit value monitoring and start button operation
  • Internal memory & RS232 interface for automatic documentation
  • Sample holder (25 mm opening) adjustable for different material thicknesses
  • particularly suitable for regular sample testing during production by trained personnel.
Schwimmbrille Prüfgerät

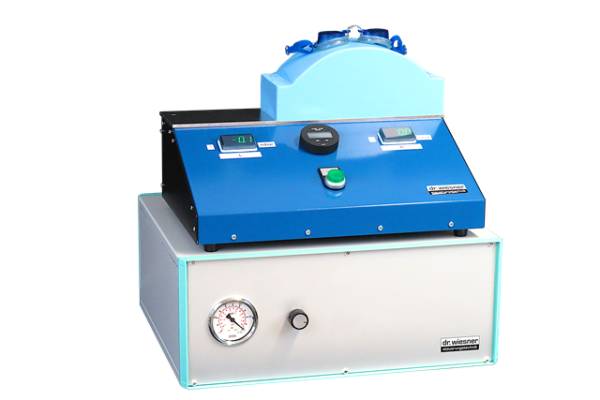

Leak Testing Device for Swimming Goggles According to ISO 18527-3

Semi-automatic testing station for testing swimming goggles

  • The leak-tightness of swimming goggles and other eye protection goggles is an essential prerequisite for their protective effect against liquids, gases, and vapors.
  • The testing device was designed according to the requirements of ISO 18527-3.
  • Enables rapid, production-related testing
  • With vacuum pump
  • Standard-compliant goggle support
Atemwiderstand-nach-DIN-EN-149-min

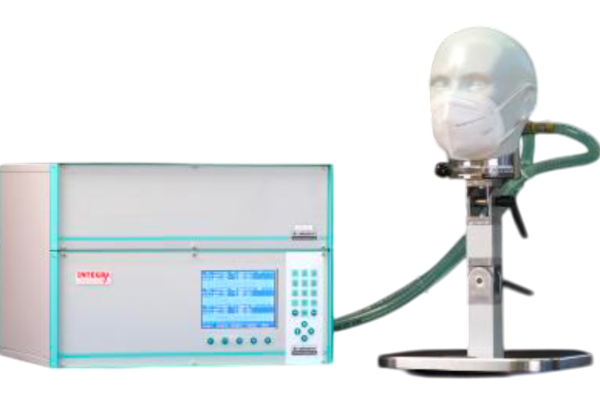

Breathing Resistance Test According to DIN EN 149 and 13274-3

Semi-automatic test bench for breathing resistance testing

  • Test bench for breathing resistance according to DIN EN 149, EN 13274-3 and CWA 17553
  • Exhalation up to 300 l/min, inhalation up to 120 l/min, range ±20 mbar
  • Fully automatic sequence with 256 test programs and limit value monitoring
  • Sheffield Test Head
  • Test head can be tilted 90° for testing the influence of gravity on valves in masks
  • Memory & RS232 interface for automatic documentation.
14683-Platz_gesamt_schraeg-min

Medical Face Masks According to DIN EN 14683

Manual test station for differential pressure testing

  • Test station for differential pressure measurements on medical face masks (DIN EN 14683) and community masks (CWA 17553).
  • Differential pressure measurement
  • Flow control
  • Vacuum supply
  • Built-in digital display shows the differential pressure
  • Sample holder (25 mm opening) adjustable for different material thicknesses

Contact us for a customized quote!

Whether for testing devices, test fixtures, machines, calibration services, trials, or contract testing:

We are here for you – you can rely on us.
